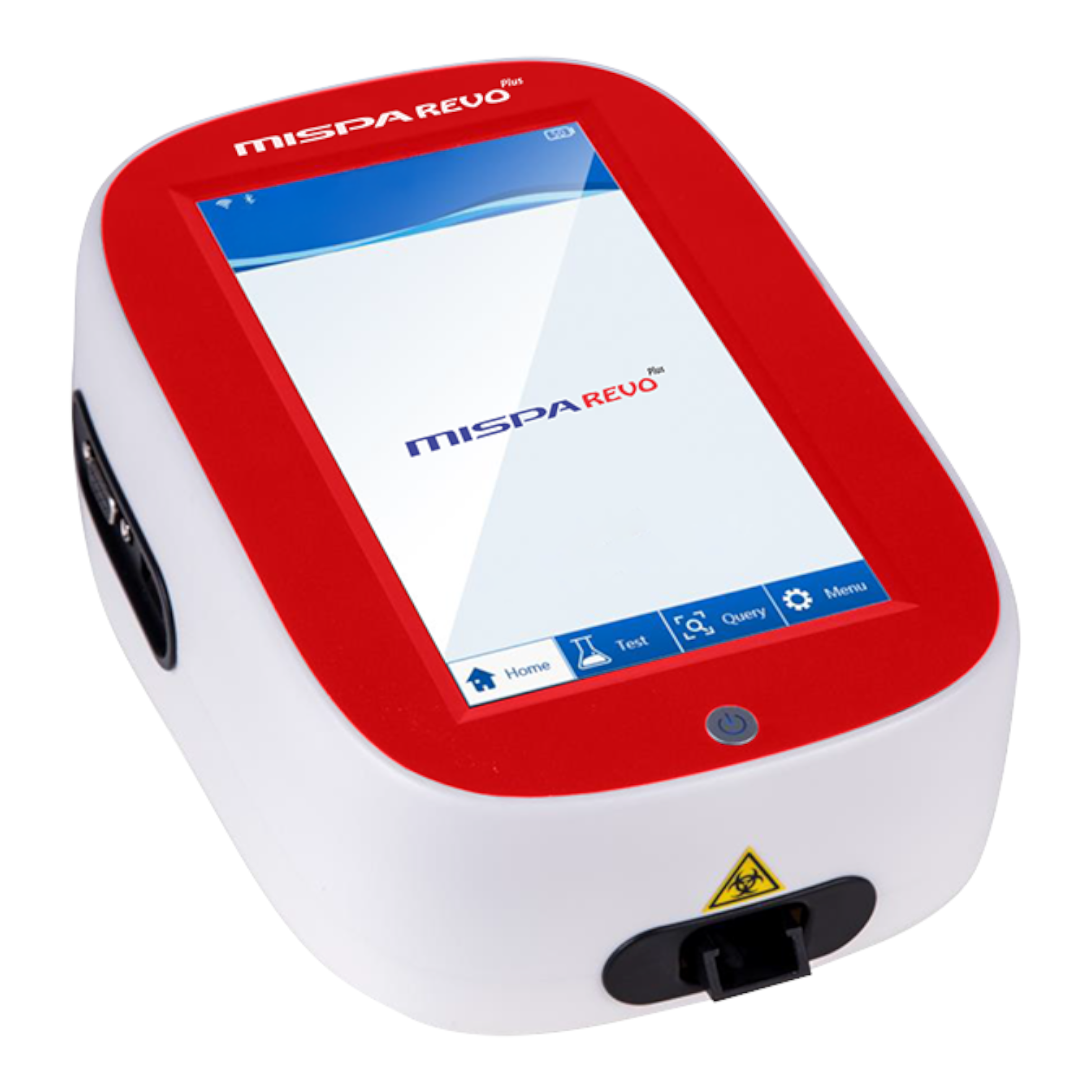

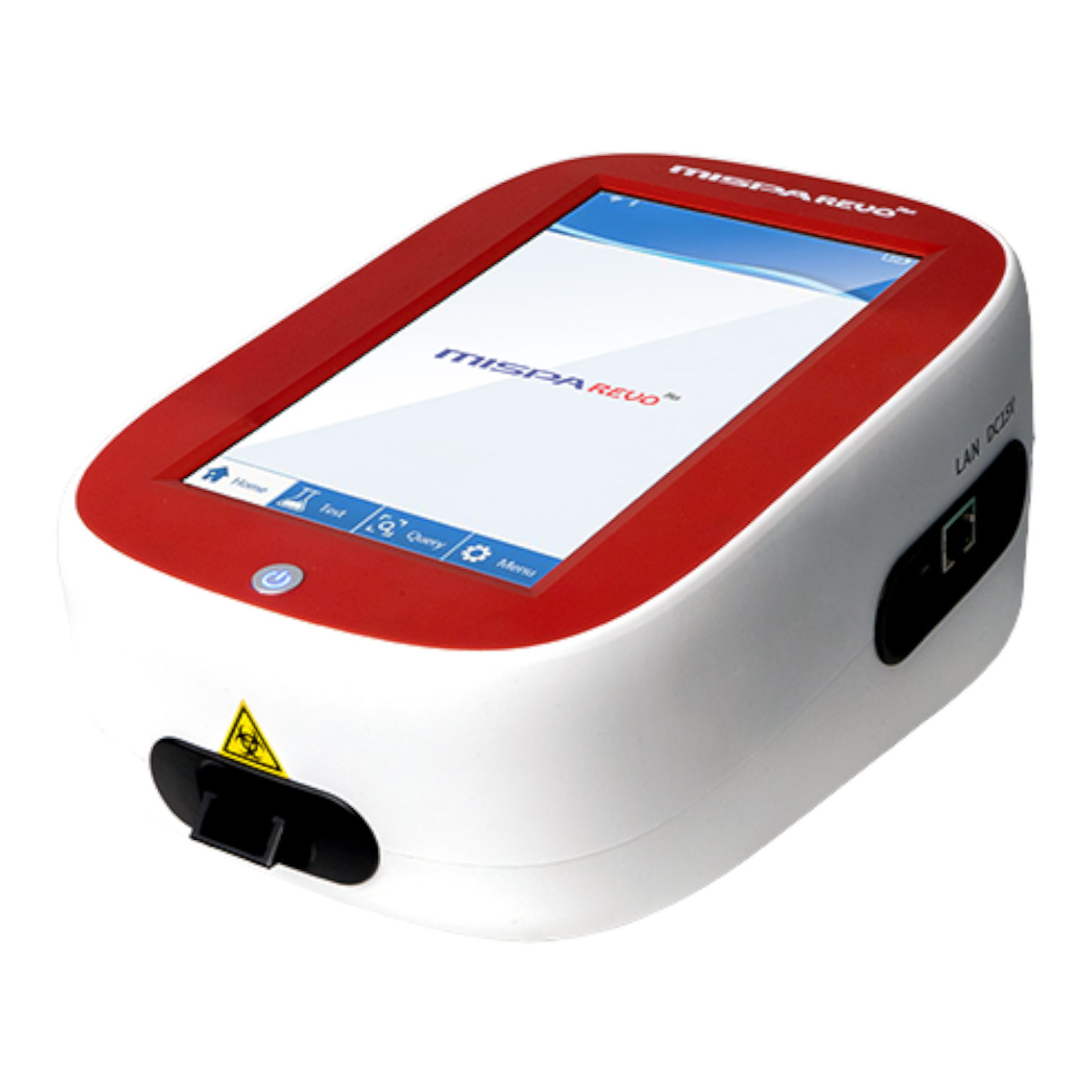

Agappe Mispa Revo Plus Fluorescence Immunoassay Analyzer

The Agappe Mispa Revo Plus is a portable, compact dry fluorescence immunoassay analyzer powered by an advanced Time-Resolved Fluorescence Immunoassay (TRFIA) method. It is engineered for sensitive, in-vitro quantitative detection of critical biomarkers across cardiovascular, thyroid, hormone, and inflammation panels, delivering rapid, accurate diagnostic insights for lab technicians anytime and anywhere.

Technical Specifications & Performance

• Automation Level: Semi-automated, rapid dry fluorescence immunoassay analyzer.
• Throughput: Extremely rapid assay turnaround with testing reaction times completing within 3 to 15 minutes depending on the selected parameter.
• No. of Parameters: Diverse diagnostic menu grouped into 25-test pack sizes covering Cardiac profiles (cTnI, cTnI/CK-MB/Myo, NT-proBNP, D-Dimer), Infection/Inflammation (PCT, hs-CRP+CRP), Gastric function, Diabetes, Hormones, and Fertility.
• Principle: Time-Resolved Fluorescence Immunoassay (TRFIA) utilizing rare earth ions (europium) as a stable, highly sensitive fluorescent marker with a specific emission spectrum of 615 nm and long fluorescence lifetime of 714 microseconds.
• Analysis Mode: Direct test card reading with immediate calculation of results after sample application.
• Calibration Curve: Instant, error-free calibration executed securely using a dedicated QR Code scanner method to eliminate manual entry steps.
• Display: Large 7-inch color touchscreen interface featuring a simplified step-by-step user operation workflow.
• Data Storage & Management: Onboard memory system holding up to 10,000 comprehensive patient data entries.

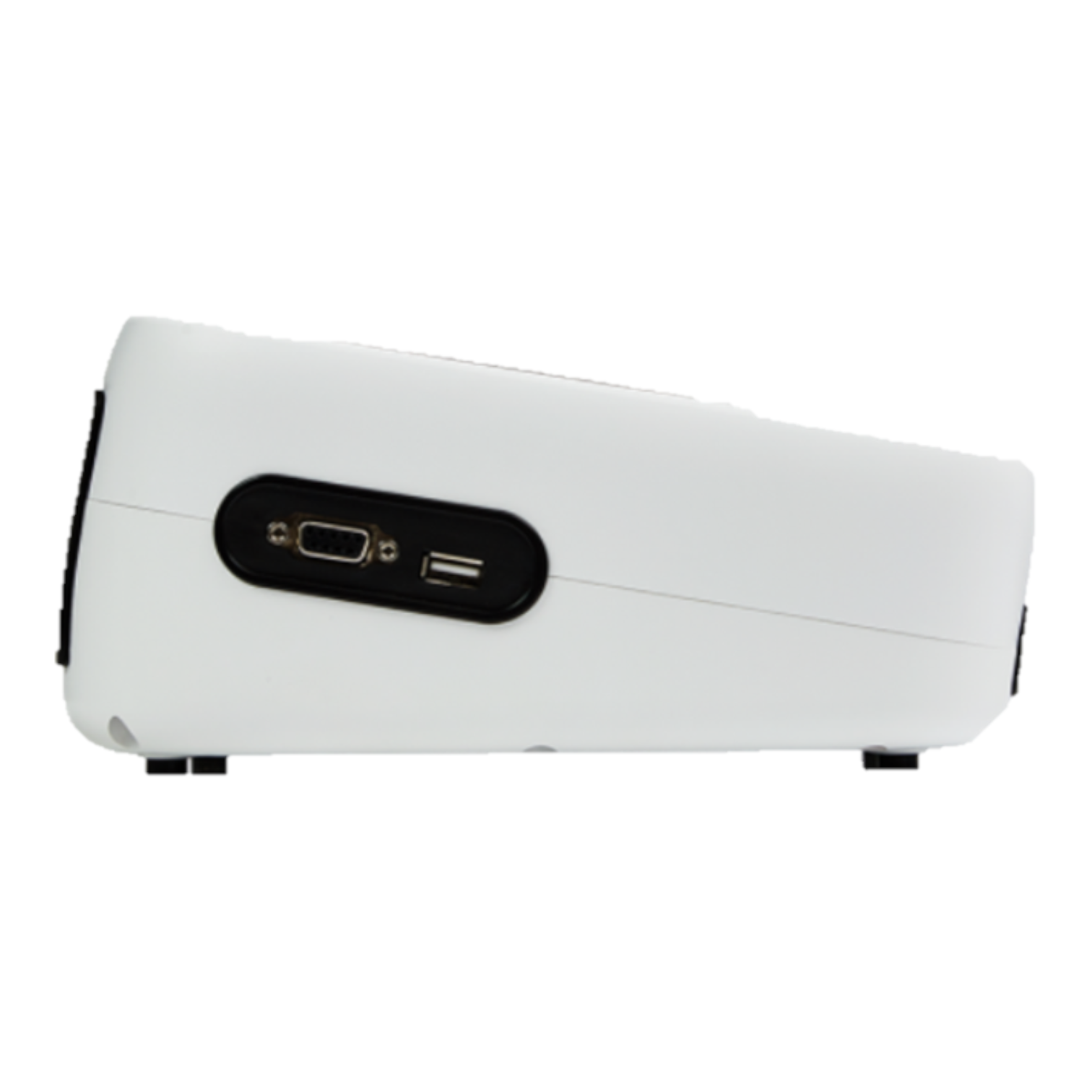

• Interface & Connectivity: Equipped with standard USB ports and an RS232 interface for full LIS/HIS communication compatibility.

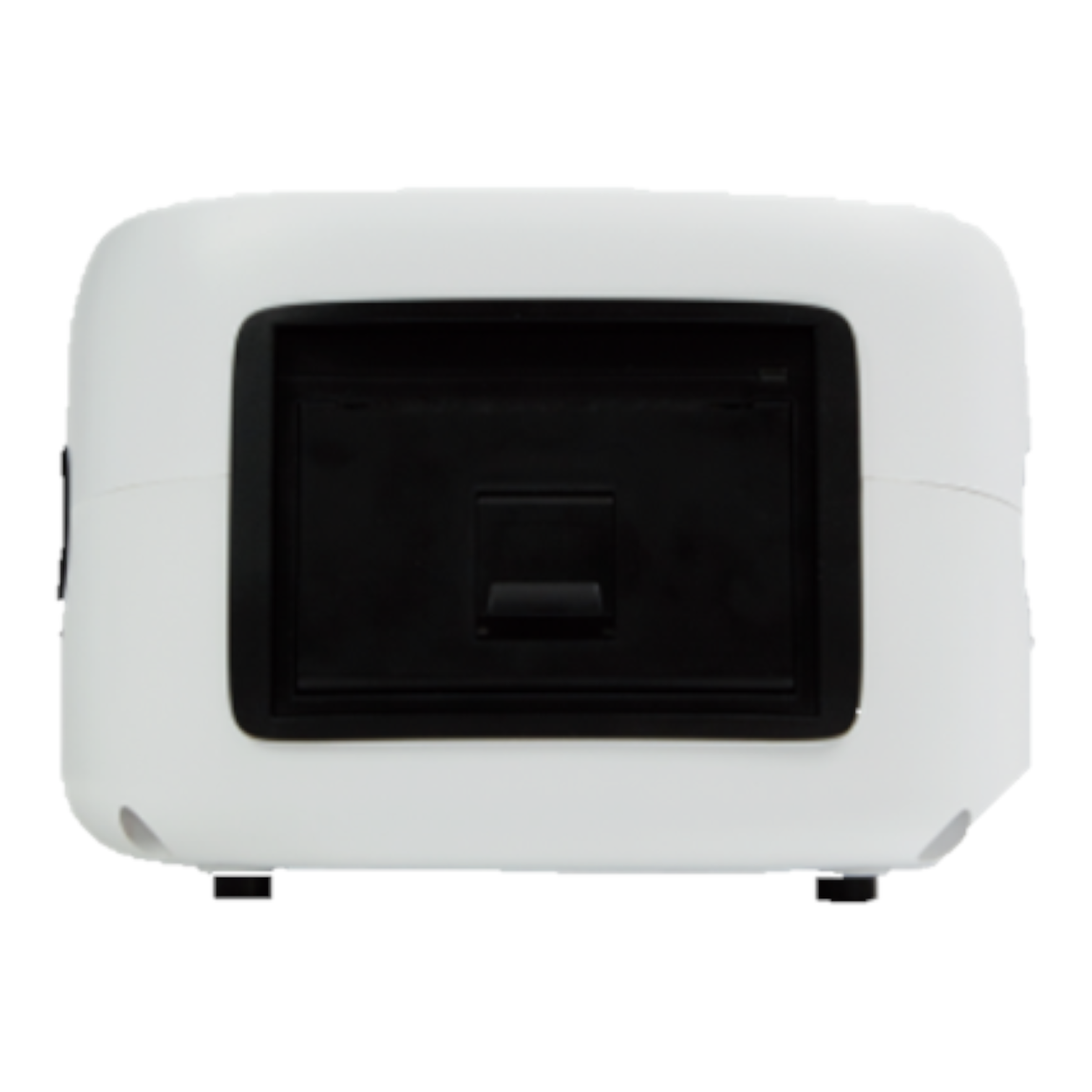

• Power Source & Utilities: Dual operational capabilities supported by a standard AC 100V-240V power grid or an integrated lithium backup battery providing a 6-hour standby time; features an integrated thermal graphic printer.

Physical Specifications

• Dimensions: 225 x 152 x 105 mm (L x W x H)
• Weight: 1.3 kg
