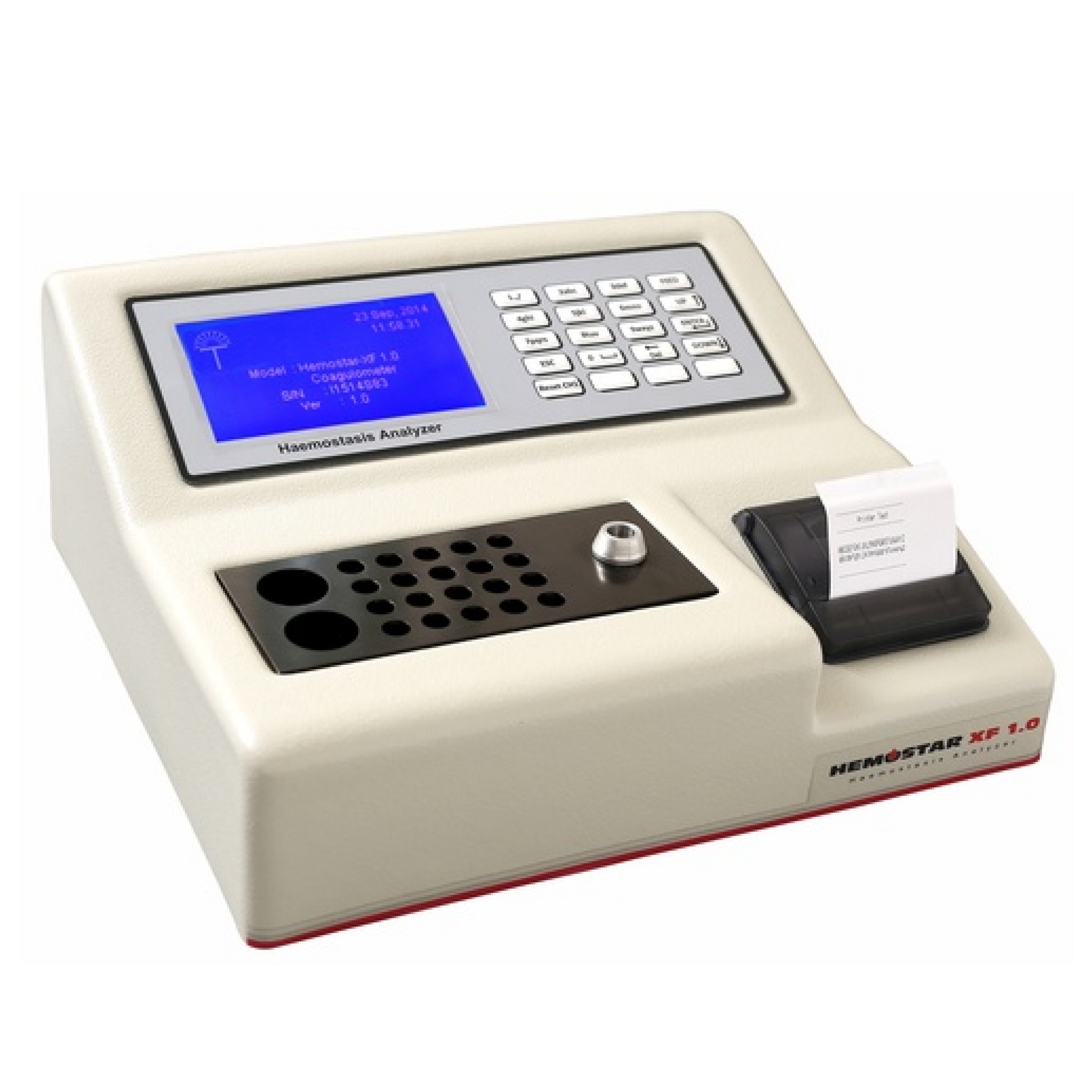

Tulip Hemostar XF 1.0 Coagulation Analyzer

The Tulip Hemostar XF 1.0 is a compact, single-channel coagulation analyzer engineered to deliver accurate and sensitive hemostasis assessments. Designed for complete synergy with routine clot-based testing reagents, it integrates a time-tested measuring module and multi-position incubation tray to streamline specialized blood clotting profiles in laboratories.

Technical Specifications & Performance

• Automation Level: Semi-automated single-channel haemostasis analyzer.
• Throughput & Workflow: Specialized single-channel operation featuring 50 programmable assay locations to store custom test protocols.
• Assay Modes: Performs a wide range of clot-based testing profiles including PT, APTT, FIB, TT, coagulation factors, Protein S (PS), and Protein C (PC).
• Principle: High-sensitivity opto-mechanical measuring system for reliable physical clot detection.
• Incubation & Temperature: Onboard heating tray stabilized at 37°C (+/- 1°C) featuring 2 dedicated reagent positions and up to 20 sample/specimen pre-warming positions alongside a single reading channel.
• Calibration Curve: Supports highly customizable multipoint calibration ranging from 2 to 7 points with live on-screen graph plotting.
• Reporting Metrics: Delivers multiple calculation options including Seconds, Ratio, INR, % Activity, mg/dl, g/L, and IU/ml.
• Sample ID Entry: Supports a programmable sample ID setup accommodating up to 10 alphanumeric or numeric characters.
• Display: Large backlit graphical LCD screen displaying real-time parameters and detailed calibration curves.
• Interface & Keyboard: Equipped with built-in data transfer capability via an RS232 serial port and integrated physical operation keys.
• Documentation: Inbuilt thermal printer for automated hardcopy generation of test records and charts.

Physical Specifications

• Dimensions: 32 x 29 x 17 cm (L x W x H)
• Weight: 6 kg
