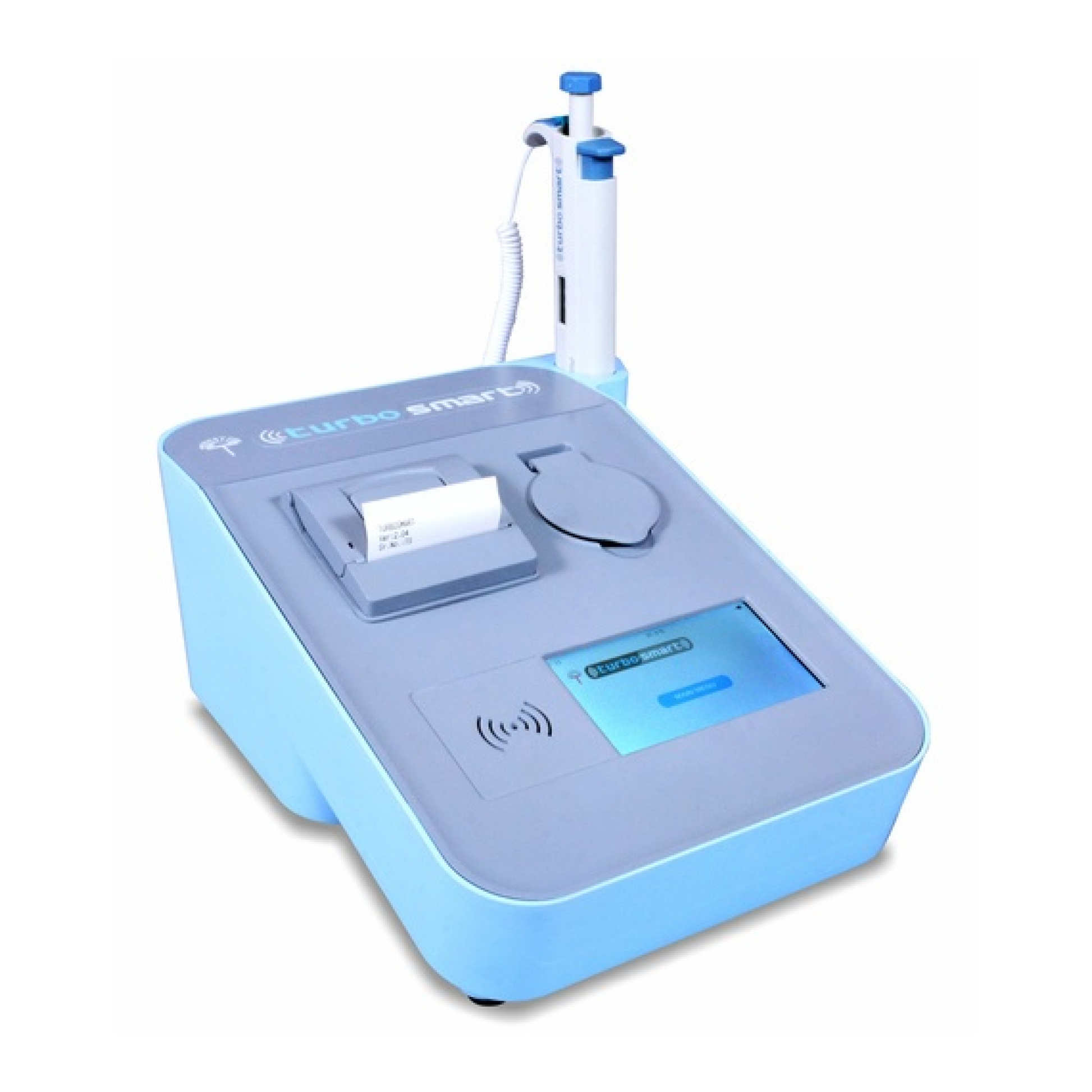

Tulip Turbosmart Immunoturbidimetry Analyzer

The Tulip Turbosmart is an advanced, RFID-enabled immunoturbidimetry analyzer designed to deliver high-precision quantitative estimation of specific proteins and immunoassay parameters. It utilizes pre-programmed, pre-calibrated lot-specific RFID technology combined with automated mixing to enhance reporting accuracy while eliminating calibration downtime and manual testing variations.

Technical Specifications & Performance

• Automation Level: Semi-automated RFID-enabled immunoturbidimetry analyzer.
• Throughput & Protocol: Streamlined 4-step testing protocol (Select Test, Tag Card, Insert R1+Sample, Add R2 & Read Results) with an electronic pipette that auto-starts the reading time instantly upon reagent addition.
• No. of Parameters: Wide menu of compatible assays including HbA1c, D-Dimer, CRP UV, hsCRP, RF, ASO, Microalbumin (MA), IgE, Ferritin, C3, and C4.
• Principle: Turbidimetry method measuring the reduction in transmitted light intensity corresponding directly to the concentration of the test analyte.
• Optical System: High-intensity Laser LED (650 nm) light source paired with precision silicon detectors positioned at 180 degrees.
• Mixing & Incubation: Onboard measuring chamber equipped with an "Automixing" system to guarantee uniform reaction mixture consistency at a stable temperature of 37°C (+/- 1°C).
• Calibration Curve: Pre-programmed and pre-calibrated lot-specific assay curve data transferred instantly to the system using a dedicated RFID card, saving time and reagent costs.
• Quality Control: Built-in 3-level quality control software displaying online Levey-Jennings plots for reliable result tracking.
• Display: 4.3-inch color touchscreen interface featuring a live, online reaction curve visualization.
• Data Storage & Transfer: Onboard memory capacity to store up to 500 patient test results with data transfer supported via a B-Type USB port.
• Power & Battery Backup: Operates on a 100-275V AC (50-60 Hz) power supply via a 12V adaptor, supplemented by a built-in 2200 mAH Li-ion backup battery for uninterrupted operation.
• Documentation: Inbuilt 58 mm thermal graphic printer for immediate reporting.

Physical Specifications

• Dimensions: 296 x 232 x 117 mm (L x W x H)
• Weight: Gross Weight - 2.5 kg, Net Weight - 1.7 kg
