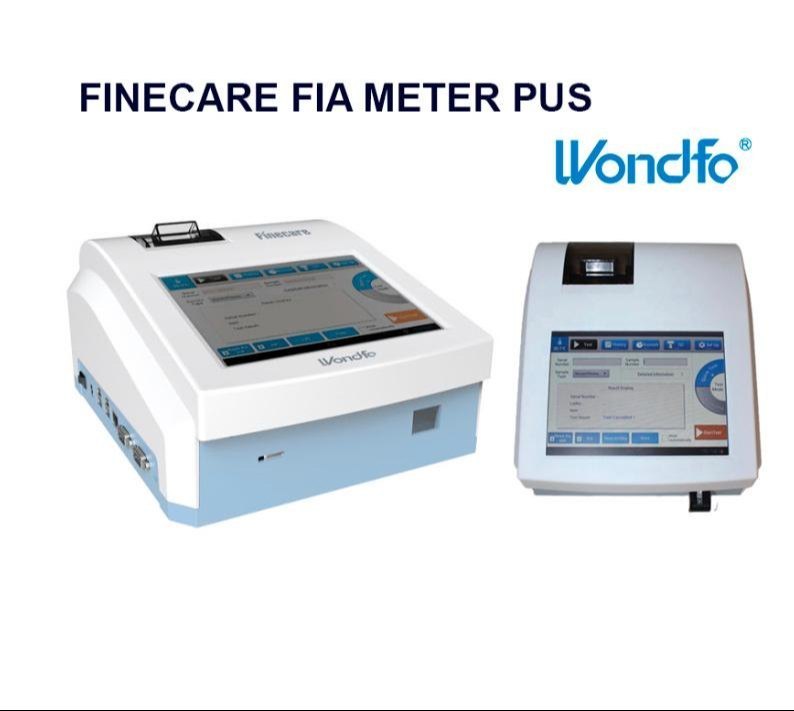

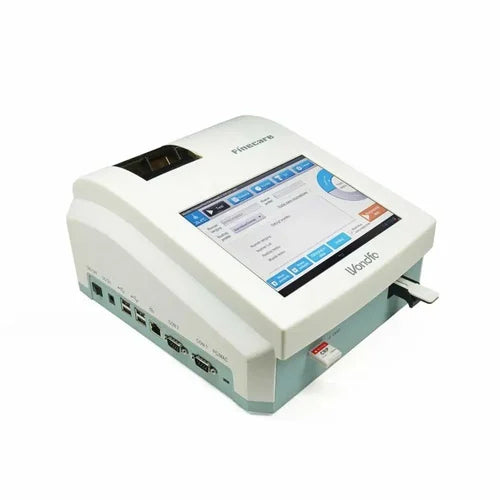

Wondfo Finacare Fia Meter Plus (FS-113)

The Finecare FIA Meter Plus (FS-113) is a portable, reliable fluorescence immunochromatographic analyzing system designed for rapid quantitative detection of various analytes in human blood or urine. It enables medical professionals to acquire accurate, laboratory-quality diagnostic results within minutes across multiple therapeutic areas, making it highly suitable for emergency rooms, laboratories, intensive care units, and specialized clinics.

Technical Specifications & Performance

• Automation Level: Semi-automated, rapid fluorescence immunoassay testing system.
• Throughput: Rapid processing delivering test results within 3 to 15 minutes depending on the specific parameter.
• No. of Parameters: Expansive multi-item testing menu across multiple diagnostic categories including Fertility (Beta-hCG), Infection (PCT, CRP, SAA), Cardiac markers (NT-proBNP, cTnI, Myo, CK-MB, BNP), Diabetes & Renal Injury (HbA1c, MAU, CysC, NGAL, B2-MG), Coagulation (D-Dimer), Hormones (T3, T4, TSH, Vitamin D, Progesterone), and Tumors (AFP, PSA, CEA).
• Principle: Fluorescence immunochromatographic technique using a high-efficiency optical module to analyze the fluorescence signal intensity from the reaction cartridge.
• Analysis Mode: Features flexible multi-mode operation supporting both "Quick Test" mode for instant cartridge scanning and standard incubation timing modes.
• Calibration Curve: Automated lot tracking and curve calibration executed instantly via a dedicated ID Chip provided with every reagent box.
• Display: Integrated 8.0-inch color touchscreen display that provides an intuitive visual interface and multi-language software navigation.
• Data Storage & Management: High capacity internal database memory storing up to 30,000 patient test results, complete with detailed timestamping and parameter breakdowns.
• Interface & Connectivity: Equipped with built-in RS232, USB, and LAN ports supporting bidirectional data transfer to Laboratory Information Systems (LIS) or Hospital Information Systems (HIS).
• Onboard Utilities: Features a built-in thermal printer for direct physical reporting, a cooling fan for temperature stability, and an integrated barcode reader for quick reagent scanning.

Physical Specifications

• Dimensions: 270 x 238 x 146 mm (L x W x H)
• Weight: 2.8 kg
